Easy Installation
B2 battery is in stacking structure with modular design. It is easy to install and maintain.

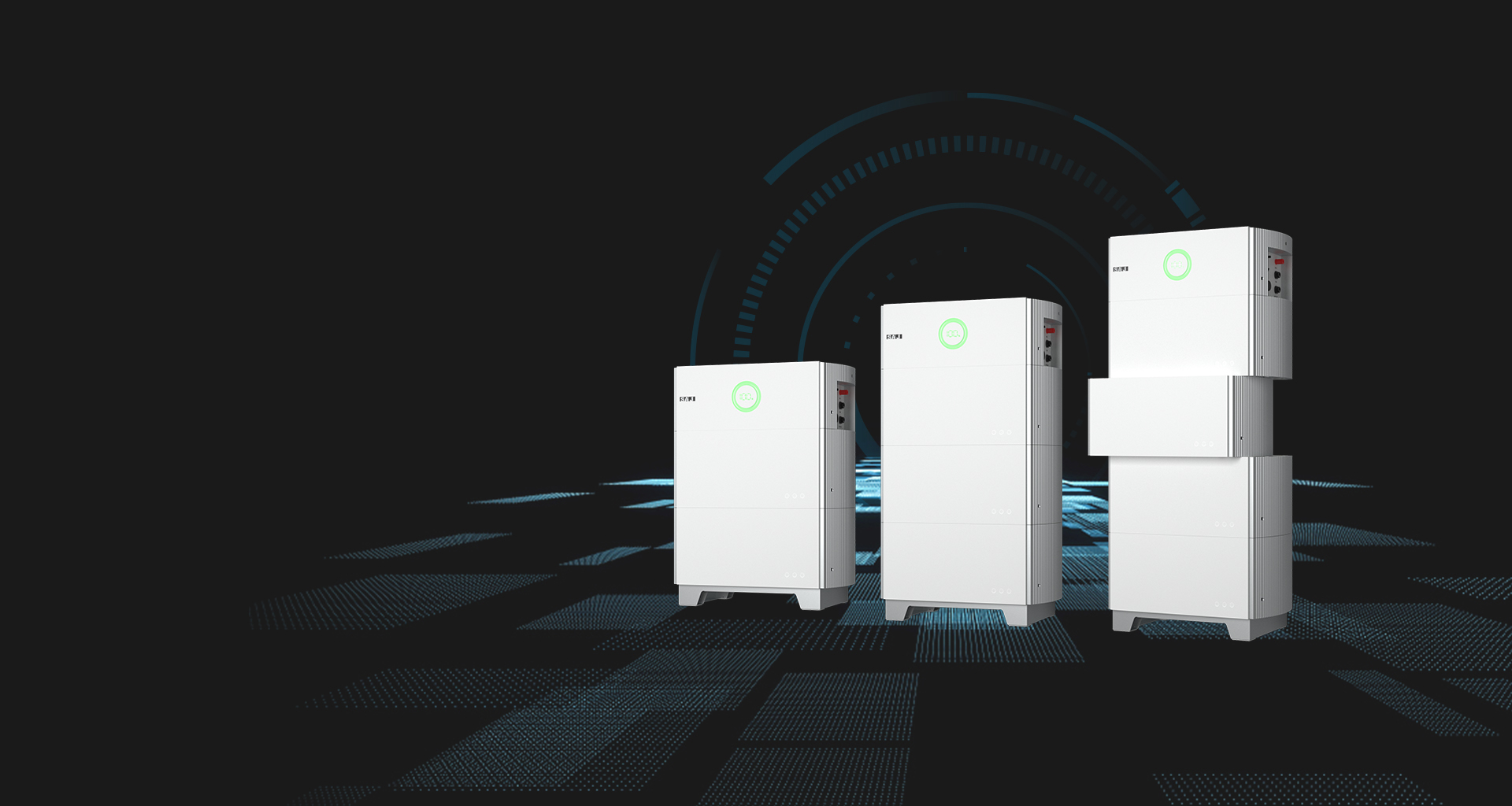

B2-HV High Voltage Lithium Battery
Revolutionize Energy Storage Solutions
B2 battery is a high-voltage cobalt free LiFePO4 battery. With a sheet metal shell, it adpats a structure compatible with wall-mounting and stacking installation methods. The pack of B2 Battery contains battery modules and a BMS controller. The number of battery modules can be flexibly matched according to the user's power demand, and up to 5 modules can be connected (25.0kWh).
Downloads
Easy Installation
B2 battery is in stacking structure with modular design. It is easy to install and maintain.
Remote Firmware Upgrade
Remote firmware upgrade reduces the cost of maintenance, offering enormous convenience.
Flexibility
The pack of B2 Battery contains battery modules and a BMS controller. Each modular contains 5.1kWh and offers flexible capacity options from 5.1kWh to 25.6kWh.

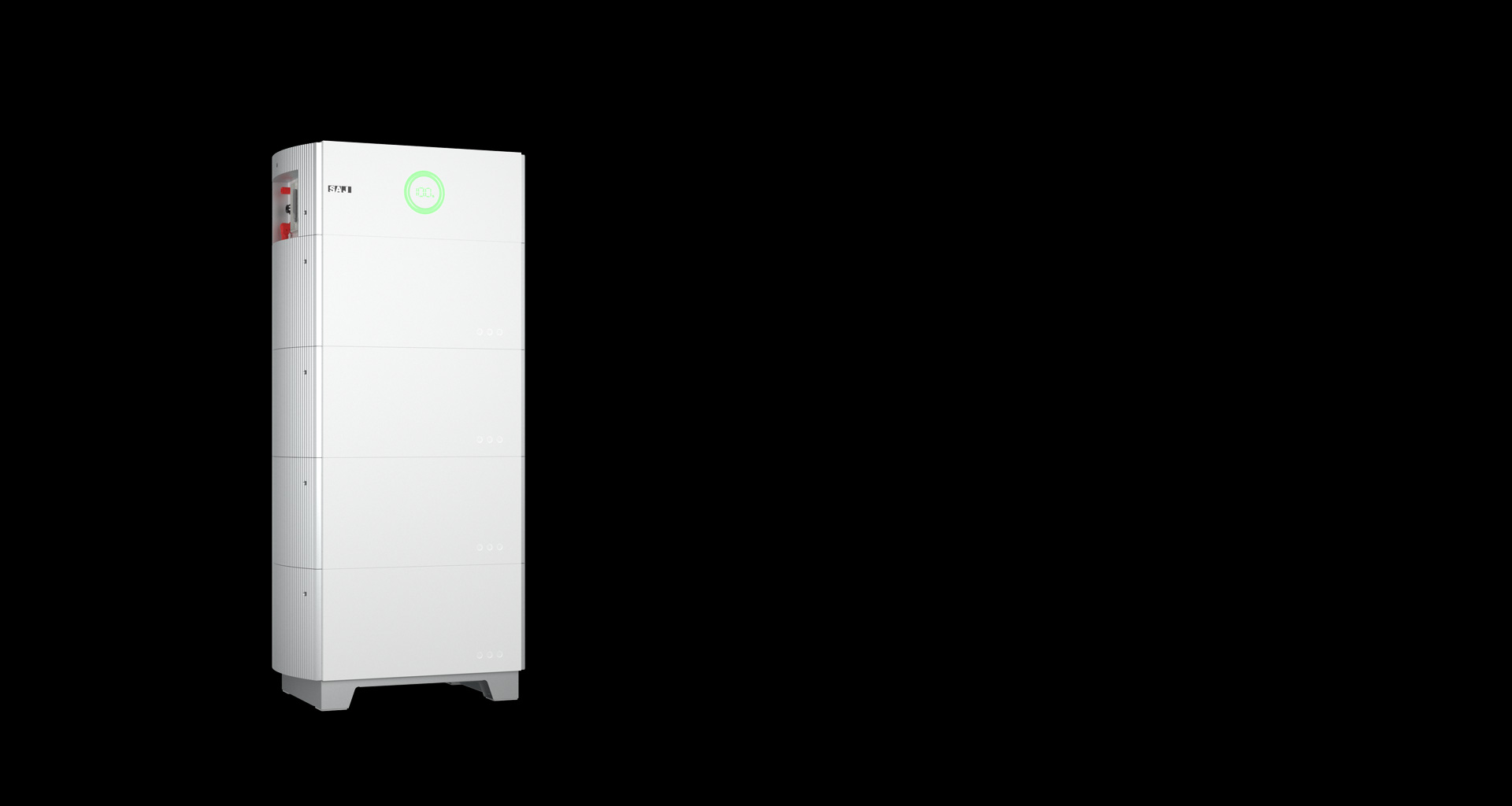

B2 Series High Voltage Lithium Battery
Technical Data
General Info
No. of Modules
1~5
Rated Energy [kWh]
5.12~25.6
Usable Energy [kWh]
4.6~23
Weight [kg]
50.5~252.5
Nominal Voltage [V]
102.4~512
Charger Voltage [V]
115.2~576
Max. Charge Current [A]
30
Max. Discharge Current [A]
30
Control Module Dimension (H*W*D)[mm]
220 *626*365
Control Module Weight [kg]
11
